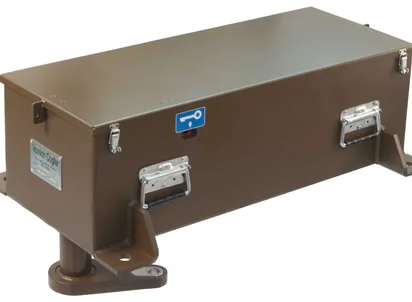

MTEH58 - Trailable point machine

Overview

The MTEH58 point machine is an innovative electro-hydraulic solution designed specifically for metros and railway depots. Born from a unique collaboration with RATP, this point machine combines new features with proven systems, ensuring optimal performance in urban networks. With over 30 years of experience from the MTEH50 series, the MTEH58 is engineered for reliability and adaptability.

Key Features

Single Drive Rod Design

Facilitates seamless integration on metro and railway tracks.

Hydraulically Assisted Manual Drive

Ensures accessibility for all operators.

Reversible Hydraulic Unit

Compatible with modern signalling systems.

Adjustable Stroke and Retention Force

Customizable to meet specific operational needs.

Robust and Silent Operation

Ideal for urban environments, minimizing noise pollution.

Modular Design

Allows for quick maintenance, maximizing availability and reducing costs.

Technical Specifications

Adjustable Stroke

110 to 170 mm

Adjustable Retention Force

Up to 300 daN

Switch Time

Less than 1.2 seconds

Detection Accuracy

Adjustable down to the millimeter

Electrical Voltage

230/400V AC

Weight

160 Kg

Operating Temperature

-30°C to +70°C

IP55 Sealing

Ensures protection against dust and water

MTBF

Greater than 1.4 million drives

SIL 4 Certification

In combination with Paulvé switch position detectors

Safety Features

Vossloh prioritizes safety in the design of the MTEH58 point machine. Key safety features include:

SIL4 Certification: Achieved through rigorous testing and simulations.
Mechanical Failure Detection: Monitors rod, axles, and loosening for enhanced safety.
Operator Protection: Mid-stroke locking device and separation of spaces ensure safe installation and maintenance.

Elevate Your Operations with the MTEH58

The MTEH58 Trailable Point Machine is not just a product; it is a commitment to safety, reliability, and efficiency in urban rail systems. With its advanced features and robust design, it stands as a testament to Vossloh's dedication to innovation in rail technology.

Contact

For more information about the MTEH58 Trailable Point Machine or to discuss your specific needs, please reach out to us.
