System 200

The versatile solution for Urban Transportation

A complete and versatile system

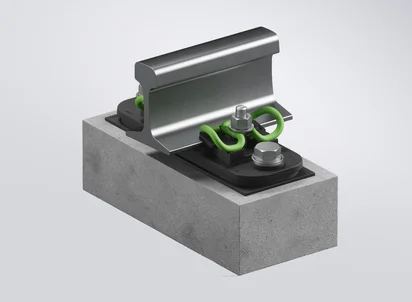

The highly elastic System 200 is a reliable and popular fastening system for urban transportation that has been in use for more than 40 years. The ribbed base plate solution for slab track in urban transportation has been constantly refined and now includes a number of totally new versions in addition to the classic one. These include solutions with a symmetrical and asymmetrical versions. The latter, in particular, allow System 200 to be even better adapted to the host structure when space is extremely tight. Our system range also includes solutions especially suitable for turnouts.

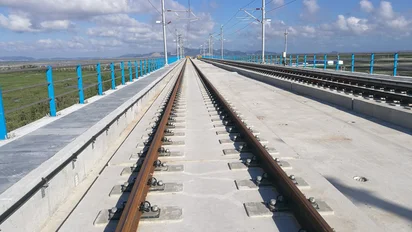

Firmly connected with slab track

To replicate the elasticity of ballasted track on a slab track, the appropriate rail fasteners must be highly elastic. That is the only way the system can perform its most important task, which involves deflecting the forces generated by a metro or tram system into the ground smoothly and with minimum impact on materials. In addition, all the elements must cope with the frequent braking and accelerating that is typical of urban transportation with no problems. That is why all the components of System 200 are rigorously designed to provide maximum elasticity. They thus offer comfortable travel for the passengers, keep the noise level down, and ensure maximum operational safety.

Technical Specification



  Urban Transportation (UTS)Urban Transportation Classic (UTS)Urban Transportation Turnout (UTS)
Axle load:  ≤ 18 t≤ 18 t≤ 18 t
Speed: ≤ 160 km/h≤ 140 km/h≤ 140 km/h
Curve radius:  ≥ 80 m≥ 80 m≥ 80 m
Height adjustment:  + 40 mm+ 20 mm+ 20 mm
Gauge adjustment:  ± 12 mm± 10 mm± 16 mm
