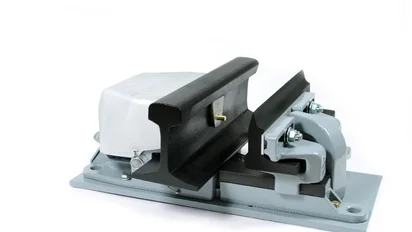

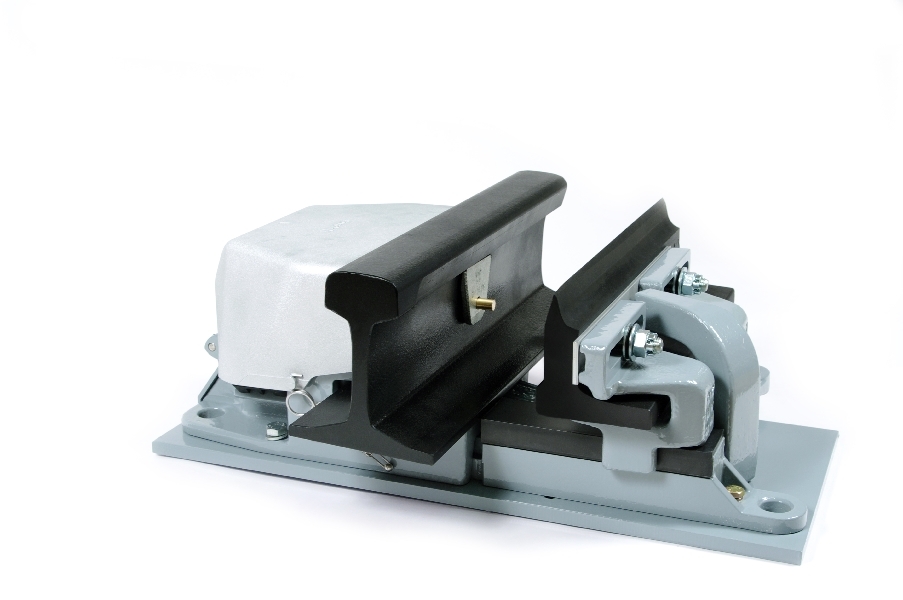

VCC - Clamp Lock - Locking Under Control

"Locking under control with safety as close as possible to the rail..."

The VCC Clamp Lock is a state-of-the-art locking solution designed to enhance the safety and reliability of rail systems. With over a century of experience, Vossloh offers locking solutions that have been rigorously tested in extreme conditions by the world's largest rail networks.

Key Features

The VCC provides positive, simultaneous locking of both switch rails, effectively eliminating the risk of derailment that can occur with conventional clamping methods.

Engineered for durability, the VCC is built to withstand high speeds, heavy loads, and varying temperatures, ensuring consistent performance across diverse environments.

The VCC is adaptable to any switch rail/stock rail profile and is compatible with various bearer types, including timber, concrete, and metallic bearers.

Technical Specifications

  • Switch Rail Opening: 110 mm to 170 mm
  • Facing Crossing Speed: Up to 350 km/h
  • Operating Temperature: -55°C to +70°C
  • Allowed Thermal Expansion: +/- 55 mm
  • Heating: Optional
  • Anti-Vandalism Protection: Included
  • Mean Time Between Failures (MTBF): Over 30 years

Installation and Operation

The VCC is designed for easy installation and operation:

  • Adaptable Mountings: Accepts various mounting types, including coach screws.
  • Independent of Track Gauge: Suitable for gauges between 1000 mm and 1676 mm.
  • Mixed Traffic Support: Designed for high-speed and heavy load applications.

The operation of the VCC involves four distinct phases, ensuring precise locking and unlocking of the switch rails. The position and locking status are monitored by clamp lock detectors, providing reliable electrical feedback on the switch rail's status.

Compliance and Endorsements

The VCC Clamp Lock meets the stringent NF F 52-162 and NF F 52-164 safety standards. It is recommended by the UIC for high-speed lines and is required by SNCF for TGV lines and all turnouts crossed at facing speeds exceeding 40 km/h.

Elevate Your Rail Safety with VCC

The VCC Clamp Lock is not just a product; it is a commitment to safety and reliability in rail transport. With its innovative design and proven performance, the VCC is the ideal choice for rail networks seeking to enhance operational safety and efficiency.

Contact

For more information about the VCC - Clamp Lock, please contact us.
